E-Z-GO Golf Cart Solenoid Clicks But Won’t Move: What to Check

You turn the key on, put your E-Z-GO golf cart in forward, press the accelerator—and nothing happens.

Maybe you can hear the solenoid click. The reverse buzzer may work normally. Everything sounds like the cart should move, but it doesn't.

One of the most important things to understand when troubleshooting an E-Z-GO is this:

A clicking solenoid does not necessarily mean the solenoid is good.

A solenoid can still energize and make an audible click while having damaged or burned internal contacts that prevent sufficient battery power from reaching the controller and motor.

Start With the Basic Symptoms

If the cart powers up normally and the reverse buzzer operates, that already gives you useful diagnostic information.

Depending on the E-Z-GO model and electrical system, this can indicate that portions of the key-switch, charger-lockout, and control circuits are functioning. The next step is determining whether full battery voltage is actually making its way through the high-current side of the system.

This is where a digital multimeter becomes extremely useful.

Check the Battery Pack Voltage First

Before diagnosing individual components, verify that the battery pack itself has proper voltage.

Set your multimeter to DC voltage and measure across the main positive and main negative terminals of the battery pack.

Remember that nominal voltage and actual measured voltage are not necessarily the same. A healthy, fully charged pack should normally measure above its nominal rating.

If pack voltage is abnormally low, solve the battery or charging problem before assuming that the controller, solenoid, or motor has failed.

Verify Power Through the Key-Switch Circuit

With the cart safely secured and the key switched on, the next step is verifying that the control side of the solenoid is receiving the voltage it needs.

If voltage is missing, possible causes can include:

A blown main fuse

Failed or corroded wiring

A damaged harness connector

A faulty key switch

Poor electrical connections

Older golf carts are especially prone to corrosion. Open connectors exposed to battery acid vapor, moisture, dirt, and years of use can develop enough resistance or corrosion to interrupt the control circuit.

Don't overlook connectors simply because the wires themselves look good.

“But I Can Hear the Solenoid Clicking”

This is where troubleshooting often goes wrong.

Hearing the solenoid click only tells you that its electromagnetic coil is attempting to operate the internal mechanism. It does not prove that the high-current contacts inside the solenoid are successfully transferring battery power.

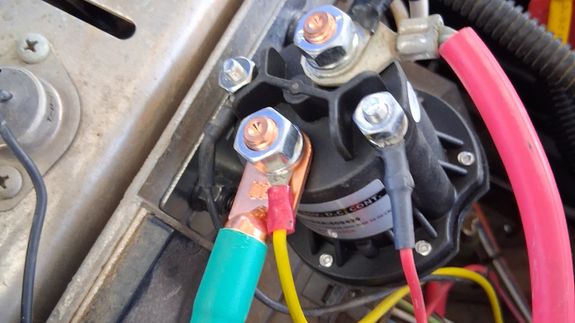

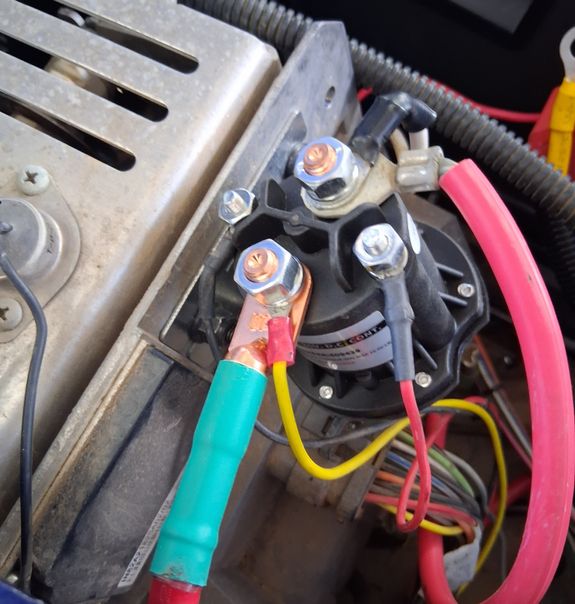

Inside a typical golf cart solenoid are heavy electrical contacts responsible for carrying substantial current.

Over time, those contacts can become:

Burned

Pitted

Carbonized

Corroded

Mechanically damaged

In severe cases, the solenoid can physically begin coming apart internally or externally.

The solenoid may still make a perfectly convincing click, while little or no usable current passes through its main terminals.

Testing Across the Solenoid

A voltage test across the large terminals of the solenoid can provide important diagnostic information.

When a properly functioning solenoid closes, the voltage difference across its two main terminals should become very small because the contacts have effectively connected the two sides.

If significant voltage remains across the solenoid while it is commanded closed, that can indicate excessive resistance or failed internal contacts.

This is an important distinction:

Solenoid activation and solenoid conductivity are two different things.

A solenoid can activate mechanically without conducting electricity properly.
